Emtron · Part 1122-082

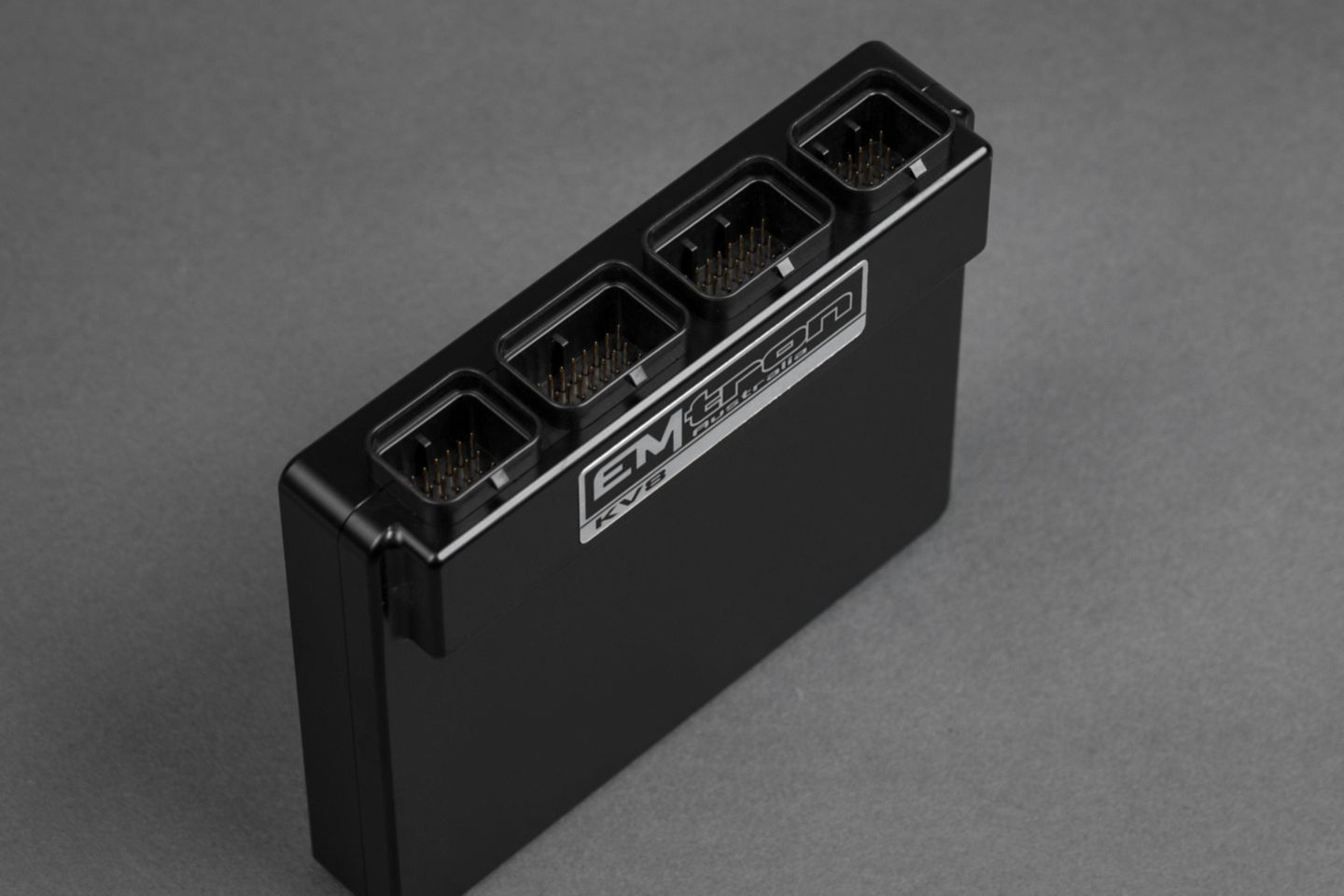

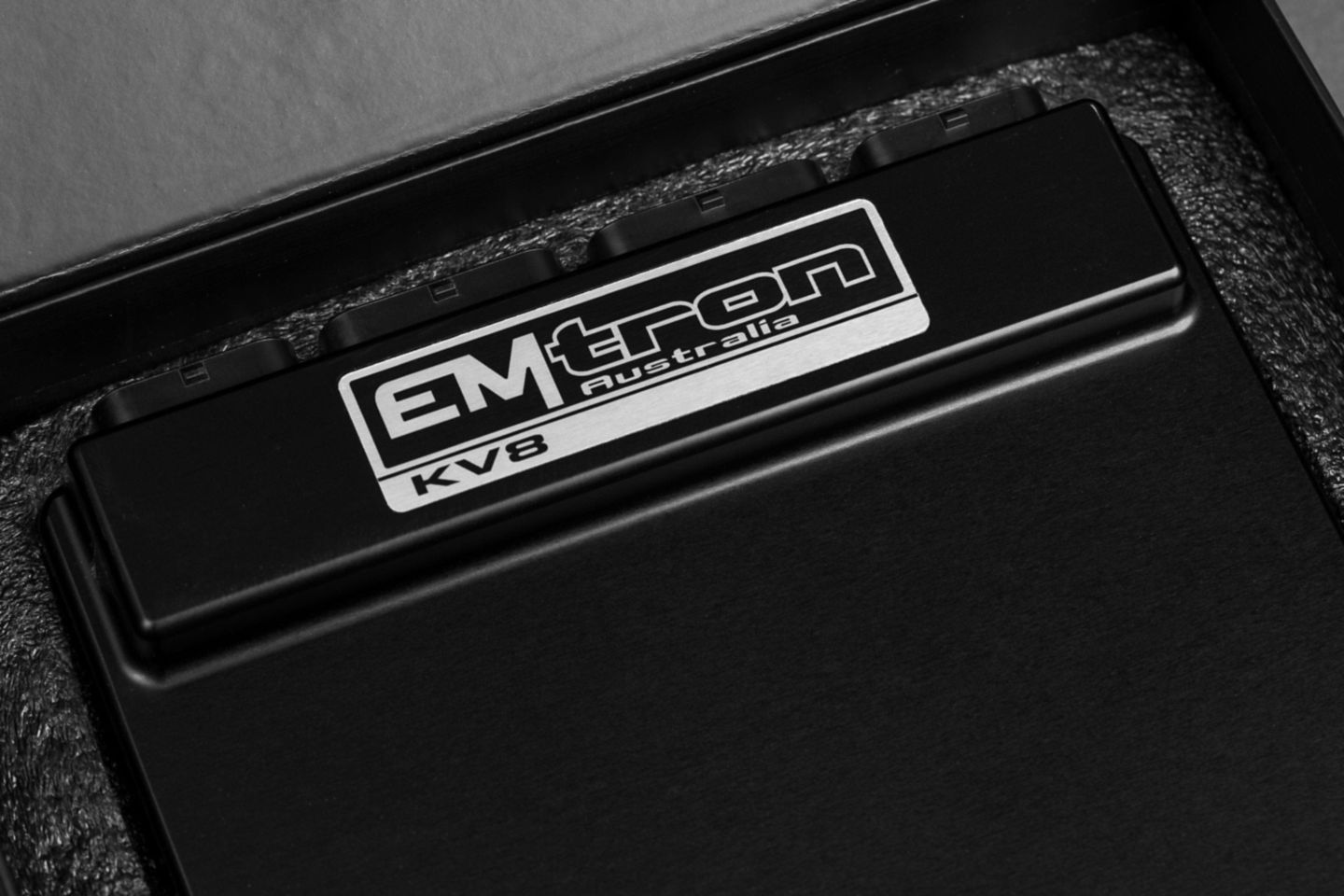

Emtron KV8 Wire-In ECU
Wire-in (universal). Up to 8 cylinders sequential fuel and ignition, e.g. GM LS/LT (port-injected), Honda K, 2JZ, RB, 4G63. Pairs with Emtron's GM LS3 terminated harness.
$3,200
In stock in Corona. Free shipping in the continental US, or collect it at the shop.
No returns or exchanges on third-party hardware — the manufacturer’s warranty is the warranty. Returns policy
Emissions
What it is and what it fits
Wire-in (universal). Up to 8 cylinders sequential fuel and ignition, e.g. GM LS/LT (port-injected), Honda K, 2JZ, RB, 4G63. Pairs with Emtron's GM LS3 terminated harness.
What it does
- Runs both low- and high-impedance injectors with per-channel peak-and-hold control
- Two wideband lambda controllers built in, so no separate controller is needed for a two-bank engine
- Two drive-by-wire throttle bodies supported
- 16 auxiliary outputs cover VVT, boost, gearshift and nitrous solenoids without an expander
- 32 MB on-board logging plus oscilloscope for trigger diagnostics
Fitted and tuned on our hub dyno, or shipped to you
Buy it and fit it yourself, or have us do it. We install, wire and calibrate Emtron engine management in our Corona shop and tune it on a Mainline ProHub hub dyno, with the full sheet at the end. Shop labor is $265 an hour, quoted against your car; the calibration is priced on the standalone tuning page.
It is in stock in Corona and ships free anywhere in the continental US. Alaska and Hawaii are quoted by phone. If you would rather collect it, or have it waiting here for your install, say so at checkout.
Specifications
Emtron 1122-082
- Brand
- Emtron
- Part number
- 1122-082
- Injector outputs
- 8x, saturated or peak-and-hold (8 A peak / 4 A hold, 10 A limit), 70 V clamp
- Ignition outputs
- 8x logic-level (35/70 mA selectable)
- Drive-by-wire
- Up to 2 throttle bodies
- Enclosure
- 6061 CNC billet aluminium, 134 x 162 x 27 mm, 730 g; 120-pin Super Seal connectors (4 plugs)
- Communications
- 1x 100 Mbps Ethernet (tuning link), 2x CAN 2.0B at 1 Mbps, 128 messages total
- Logging
- 32 MB on-board, over 1,200 channels, 1-500 Hz; 4-channel oscilloscope at 100k samples/s
- Auxiliary outputs
- 16 (Aux 1-8 low/high side; Aux 9-16 half-bridge, 9-12 H-bridge capable for DC motor/DBW)
- Analog inputs
- 16x 0-5 V, 12-bit; 6 of them (ANV 7-12) switchable for 2-wire temperature sensors
- Digital inputs
- 14 (DI 1-8 frequency/speed up to 30 kHz, DI 9-14 switched); plus 2 dedicated crank/cam inputs (mag or Hall)
- Knock
- 2 fully differential channels, Bosch digital knock IC, 500 Hz-25 kHz centre frequency
- Lambda
- 2 on-board Bosch LSU 4.9 wideband controllers (0.58-10.0 lambda)
- Internal sensors
- Barometric sensor (40-115 kPa) and 3-axis accelerometer
- Supply / temperature
- 6-22 V DC operating; -30 to 110 C max, -30 to 85 C recommended
Questions
Before you buy
Is this the price other dealers charge?
Yes. $3,200 is the price authorised Emtron dealers advertise, and DEFI is an authorised Emtron dealer. Shipping in the continental US is free on top of that.
Will it fit my engine?
Read the fitment above against your engine, sensors, injectors and throttle before you buy. If anything is unclear — a part number, a connector, a transmission — call us first. That conversation is free; a wrong unit is not.
Can I return it if it is the wrong one?
No. There are no returns or exchanges on third-party hardware once it ships — the manufacturer’s warranty is the warranty. That is why we would rather answer the fitment question on the phone before you order.
Is it street legal?
Emtron publishes no CARB Executive Order for this unit. It is competition engine management: not legal on a pollution-controlled vehicle in California, and a vehicle running it will not pass a smog inspection. We are not going to imply otherwise.
Can you tune it for me?
Yes. We calibrate Emtron standalones on our hub dyno in Corona, and we can review logs remotely if the car is somewhere else.
