Haltech · Part HT-193000

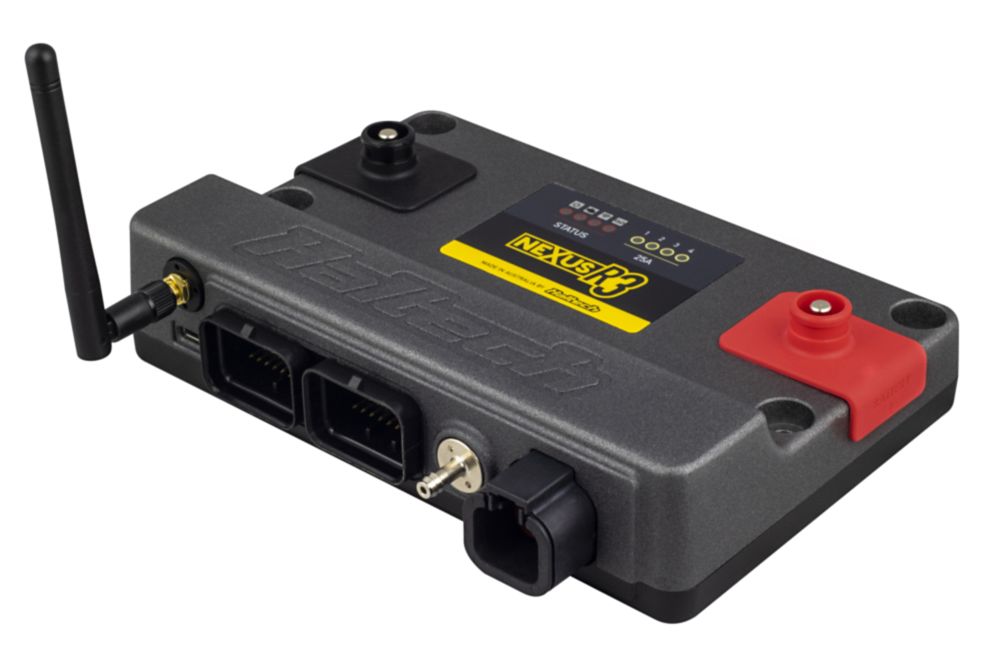

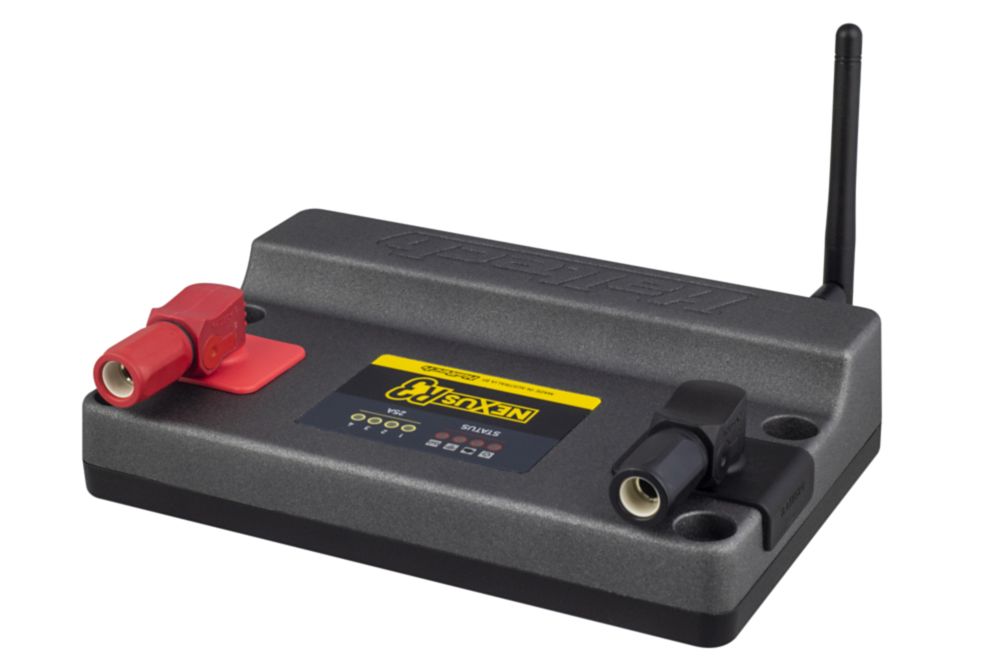

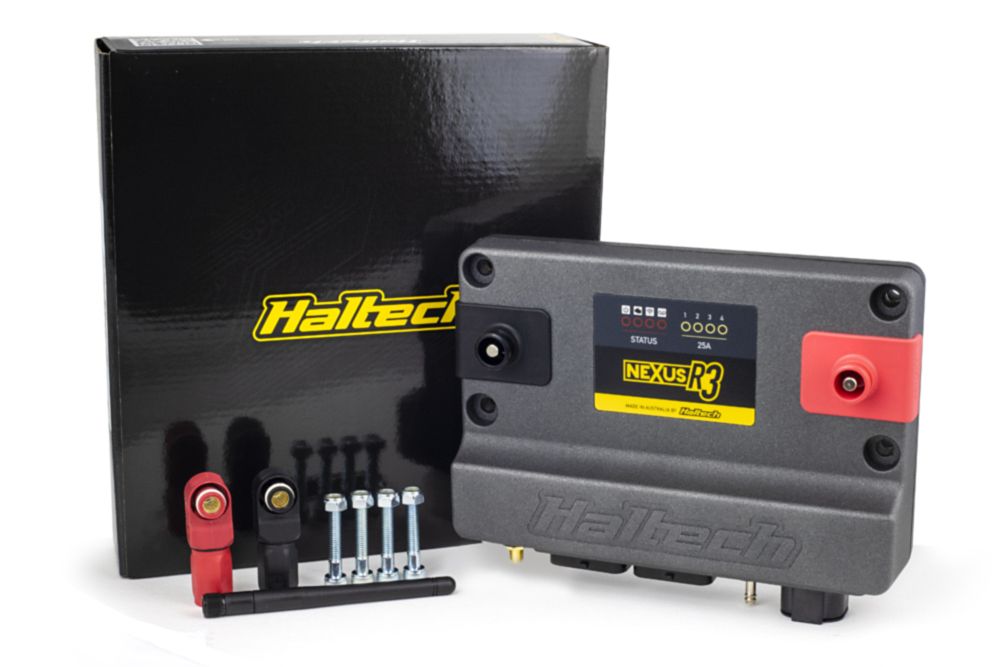

Haltech Nexus R3 VCU
Universal: engines up to 8 cylinders or 4 rotors; race cars needing ECU + PDM + logger in one box. Harness separate (HT-183200 universal, HT-1864xx terminated).
$2,585
In stock in Corona. Free shipping in the continental US, or collect it at the shop.
No returns or exchanges on third-party hardware — the manufacturer’s warranty is the warranty. Returns policy
Emissions
What it is and what it fits
Universal: engines up to 8 cylinders or 4 rotors; race cars needing ECU + PDM + logger in one box. Harness separate (HT-183200 universal, HT-1864xx terminated).
What it does
- Combines engine management, power distribution, a wideband controller and a data logger in one unit.
- Four 25A outputs can drive fuel pump, fan and similar loads without separate relays.
- Dual drive-by-wire capable via six 8A half-bridge outputs.
- Direct control of GM 4L60E/4L80E and other listed automatics.
- Includes Advanced Torque Management and the full race-function set.
Fitted and tuned on our hub dyno, or shipped to you
Buy it and fit it yourself, or have us do it. We install, wire and calibrate Haltech engine management in our Corona shop and tune it on a Mainline ProHub hub dyno, with the full sheet at the end. Shop labor is $265 an hour, quoted against your car; the calibration is priced on the standalone tuning page.
It is in stock in Corona and ships free anywhere in the continental US. Alaska and Hawaii are quoted by phone. If you would rather collect it, or have it waiting here for your install, say so at checkout.
Specifications
Haltech HT-193000
- Brand
- Haltech
- Part number
- HT-193000
- Injector outputs
- 8 peak/hold
- Ignition outputs
- 8
- 25A high-current outputs
- 4 (built-in PDM)
- Half-bridge outputs
- 6 x 8A (dual DBW)
- Analog voltage inputs
- 11
- Synchronised pulsed inputs
- 6
- On-board wideband
- 1 x NTK / LSU 4.9
- MAP sensor
- Internal 4 bar
- CAN bus
- 2
- Data logging
- Up to 300 channels at 1 kHz, 128MB
- Other
- G-sensor, Wi-Fi, USB-C
Questions
Before you buy
Is this the price other dealers charge?
Yes. $2,585 is the price authorised Haltech dealers advertise, and DEFI is an authorised Haltech dealer. Shipping in the continental US is free on top of that.
Will it fit my engine?
Read the fitment above against your engine, sensors, injectors and throttle before you buy. If anything is unclear — a part number, a connector, a transmission — call us first. That conversation is free; a wrong unit is not.
Can I return it if it is the wrong one?
No. There are no returns or exchanges on third-party hardware once it ships — the manufacturer’s warranty is the warranty. That is why we would rather answer the fitment question on the phone before you order.
Is it street legal?
Haltech sells this for sanctioned off-road and competition use on vehicles that are not emissions-controlled, never on a public road. There is no CARB Executive Order: it is not legal on a pollution-controlled vehicle in California, and a vehicle running it will not pass a smog inspection.
Can you tune it for me?
Yes. We calibrate Haltech standalones on our hub dyno in Corona, and we can review logs remotely if the car is somewhere else.
