Haltech · Part HT-220204
Haltech Nexus Rebel LS ECU + Terminated Harness Kit (Gen IV, 6-pin DBW, EV6)
GM Gen IV LS (LS2/LS3/L92/LY6 family etc.) with 6-pin drive-by-wire throttle, EV6 injector connectors and manual transmission. LS-swap focused; high-impedance injectors only; no automatic transmission control.
$1,695
In stock in Corona. Free shipping in the continental US, or collect it at the shop.
No returns or exchanges on third-party hardware — the manufacturer’s warranty is the warranty. Returns policy
Emissions
What it is and what it fits
GM Gen IV LS (LS2/LS3/L92/LY6 family etc.) with 6-pin drive-by-wire throttle, EV6 injector connectors and manual transmission. LS-swap focused; high-impedance injectors only; no automatic transmission control.
What it does

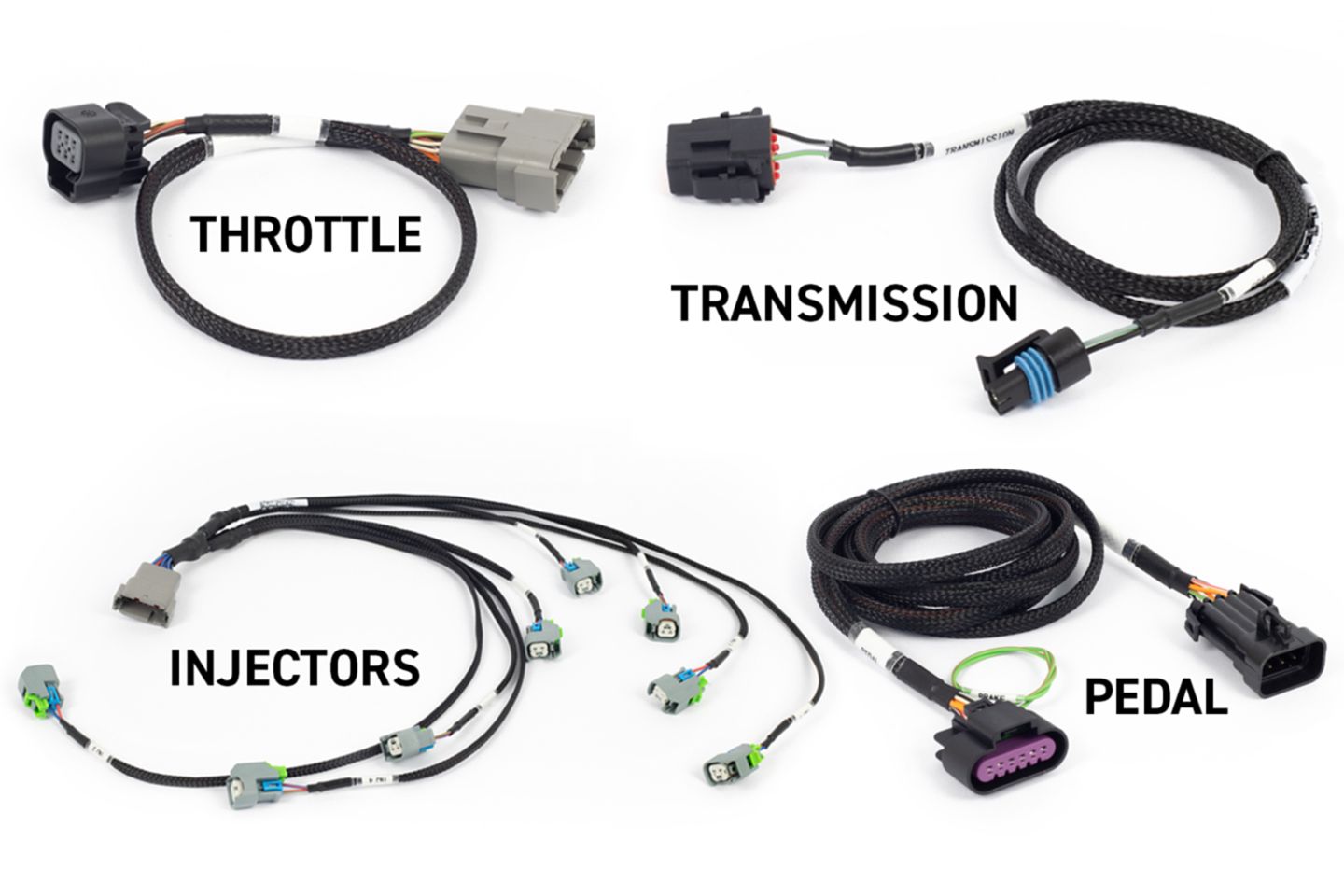

- ECU and harness are sold together as one kit built specifically for the LS platform, so no universal wiring has to be terminated.
- NSP software includes an LS set-up wizard that pre-configures the base calibration.

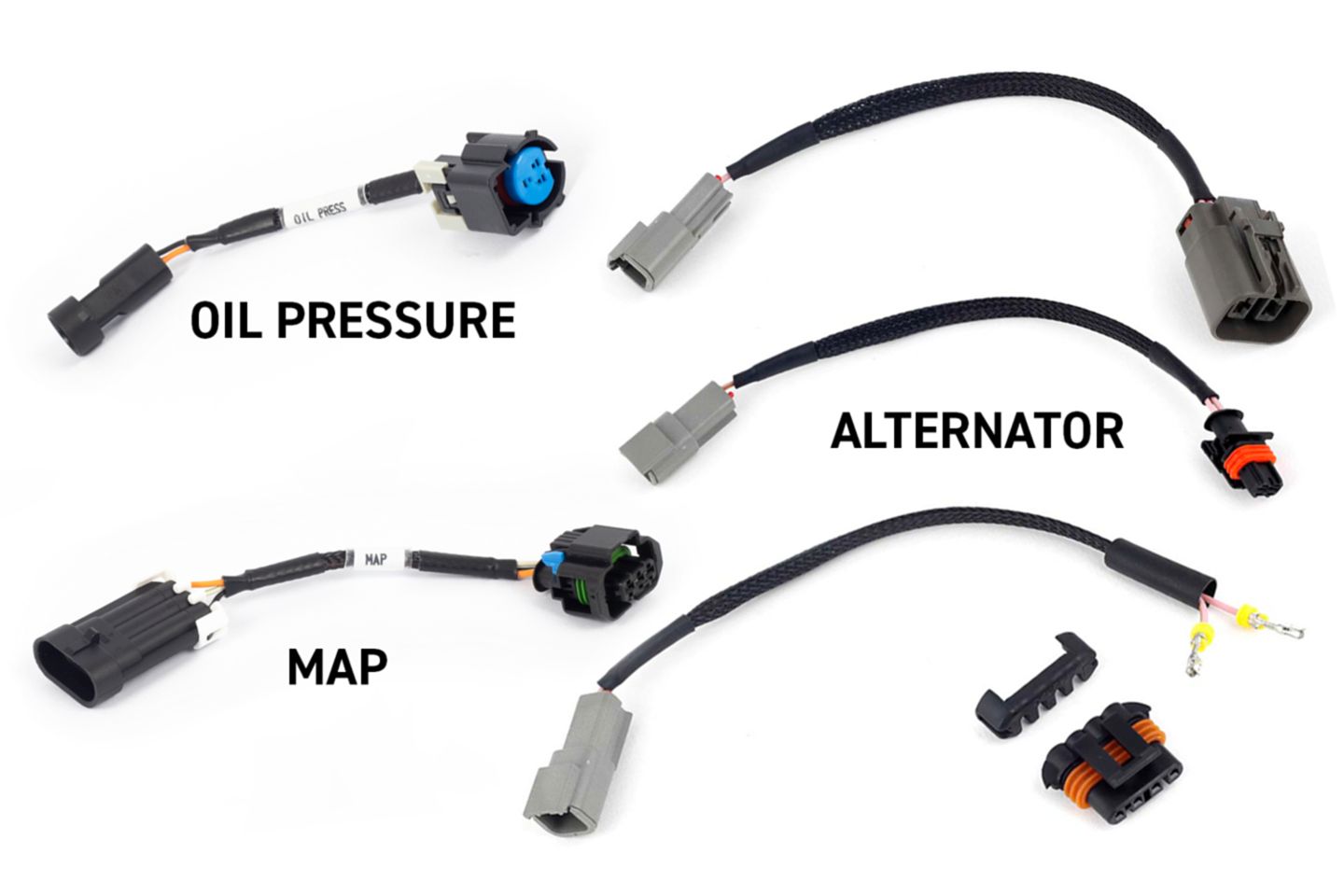

- Includes adaptors for three alternator connector styles, the Corvette pedal and Gen IV oil-pressure/MAP sensors.

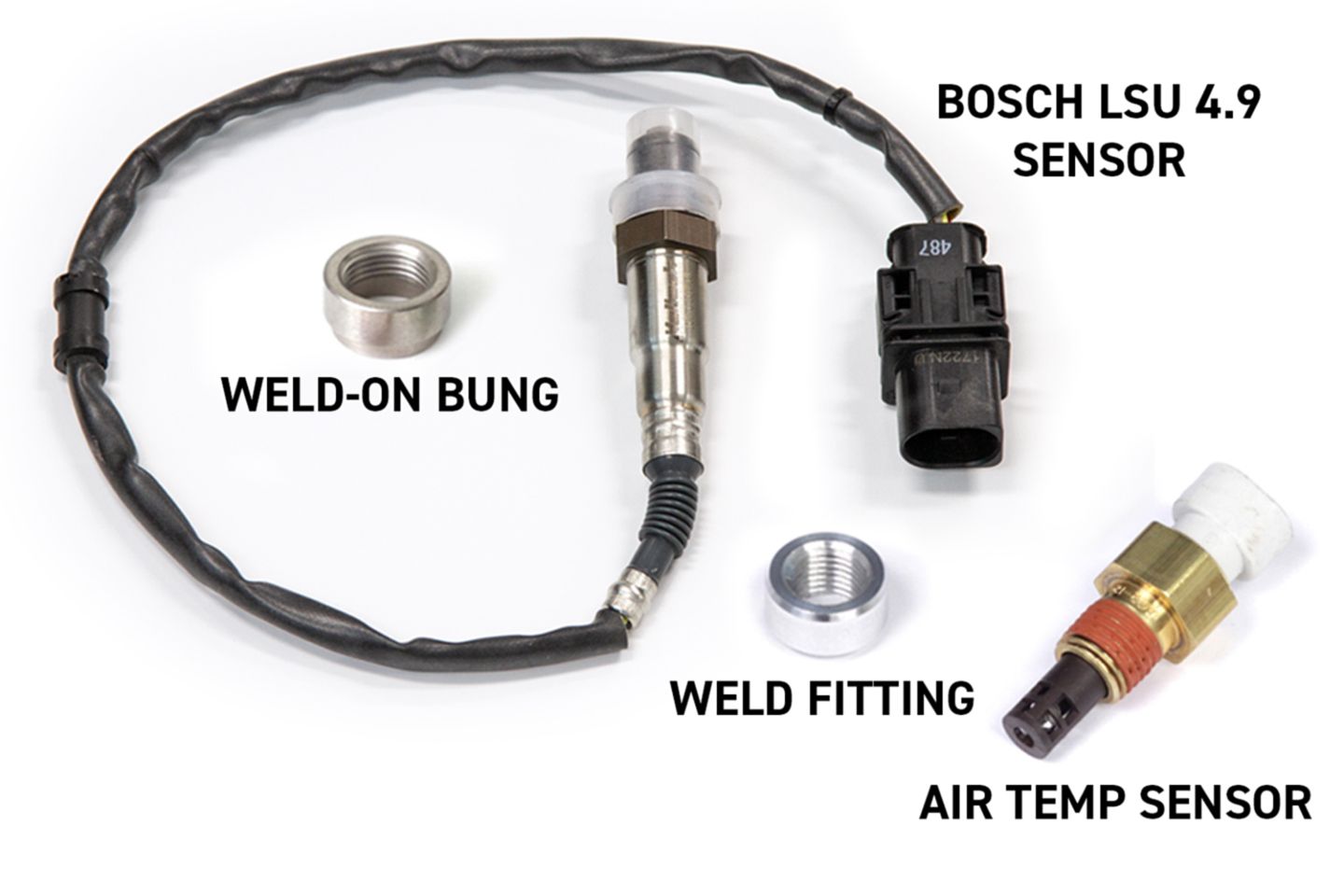

- On-board wideband controller with the sensor supplied in the box.
- Plugs into Haltech dashes, PDMs and CAN expansion devices.
Fitted and tuned on our hub dyno, or shipped to you
Buy it and fit it yourself, or have us do it. We install, wire and calibrate Haltech engine management in our Corona shop and tune it on a Mainline ProHub hub dyno, with the full sheet at the end. Shop labor is $265 an hour, quoted against your car; the calibration is priced on the standalone tuning page.
It is in stock in Corona and ships free anywhere in the continental US. Alaska and Hawaii are quoted by phone. If you would rather collect it, or have it waiting here for your install, say so at checkout.
Specifications
Haltech HT-220204
- Brand
- Haltech
- Part number
- HT-220204
- Engine family
- GM Gen IV LS V8
- Injector outputs
- 8 (high-impedance only)
- Ignition outputs
- 8
- Throttle
- Drive-by-wire (6-pin)
- Wideband
- On-board controller, Bosch LSU 4.9 sensor included
- MAP sensor
- On-board 4 bar
- CAN
- 1 channel for Haltech CAN devices
- Connectivity
- USB-C, Wi-Fi
- Transmission
- Manual (T56 harness included); auto control not supported
- Software
- Haltech NSP with LS set-up wizard
Questions
Before you buy
Is this the price other dealers charge?
Yes. $1,695 is the price authorised Haltech dealers advertise, and DEFI is an authorised Haltech dealer. Shipping in the continental US is free on top of that.
Will it fit my engine?
Read the fitment above against your engine, sensors, injectors and throttle before you buy. If anything is unclear — a part number, a connector, a transmission — call us first. That conversation is free; a wrong unit is not.
Can I return it if it is the wrong one?
No. There are no returns or exchanges on third-party hardware once it ships — the manufacturer’s warranty is the warranty. That is why we would rather answer the fitment question on the phone before you order.
Is it street legal?
Haltech sells this for sanctioned off-road and competition use on vehicles that are not emissions-controlled, never on a public road. There is no CARB Executive Order: it is not legal on a pollution-controlled vehicle in California, and a vehicle running it will not pass a smog inspection.
Can you tune it for me?
Yes. We calibrate Haltech standalones on our hub dyno in Corona, and we can review logs remotely if the car is somewhere else.
